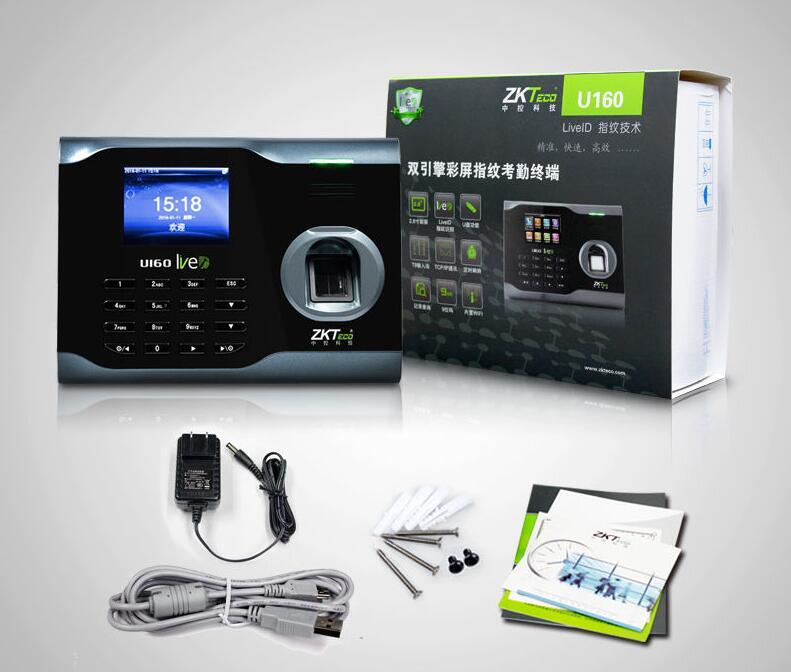

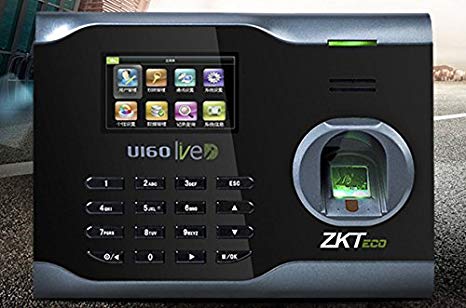

U160 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The U160-C features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The 3-inch TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Features:
Color TFT screen with GUI Interface for ease of use
Optical Sensor
1 touch a-second user recognition
Stores 3,000 templates and 100,000 transactions
Reads Fingerprint and/or PINs
Built-in Serial and Ethernet ports
Built-in USB port allows for manual data transfer when network isn't availableBuilt in bell scheduling
Real-time 1-touch data export 3rd party hosted & non-hosted applications
Audio-Visual indications for acceptance and rejection of valid/invalid fingers
SDK available for OEM customers and software developers
Specifications:
Fingerprint Capacity:3000
Transaction Capacity:100,000
Hardware Platform:ZEM560
Sensor:Optical Sensor
Algorithm Version:Finger v10.0
Communication:RS232/485, TCP/IP,USB-host, USB-client, WiFi
Standard Functions:DLST, Scheduled-bell, Self-Service Query,Automatic Status Switch
Display:3 inches TFT Screen
Power Supply:5V DC 2A
Operating Temperature:0 - 45 Celsius
Operating Humidity:20%-80%
Dimension:190X140X46 mm
